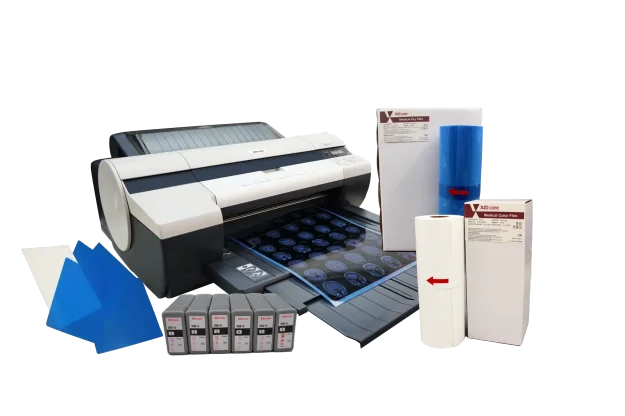

Medical X-ray Imaging Dry Film Printer

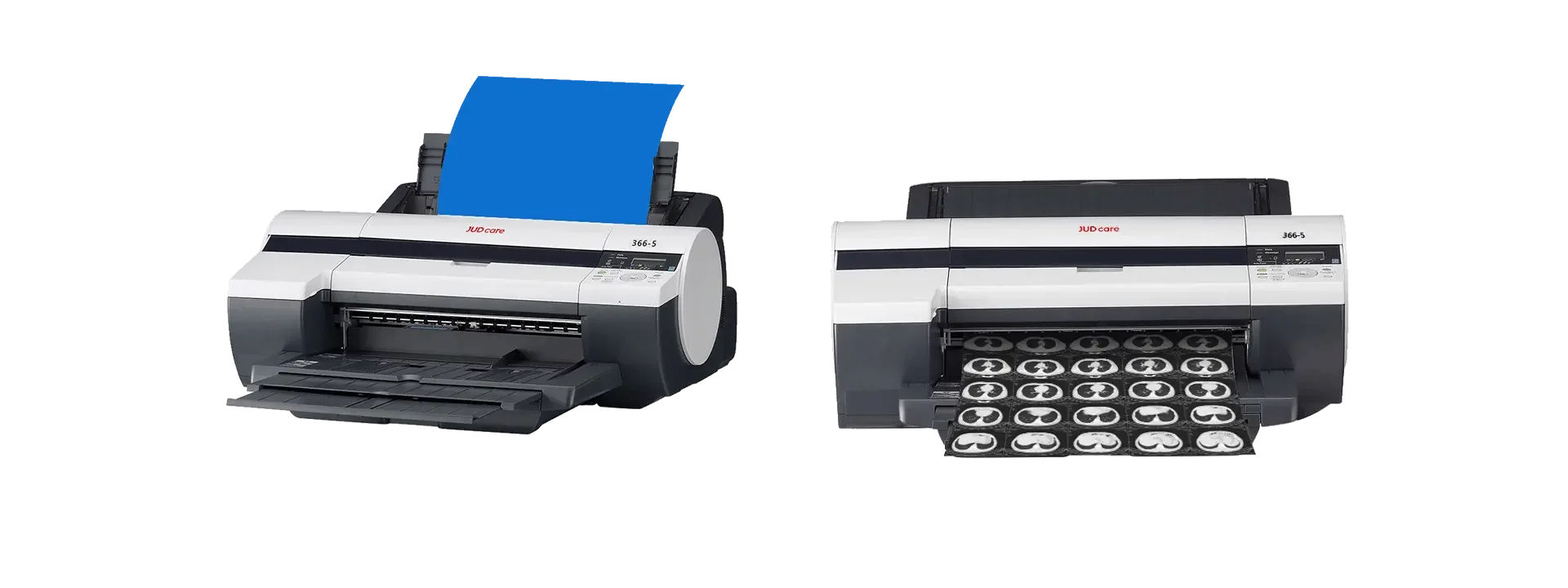

JUDcare provides a high-quality tabletop digital medical X-ray imaging Dicom dry inkjet film printer (366-5(6)). The medical film printer (366-5 and 366-6) adopt special radiographic film and ink, both of which were researched, developed, and produced by JUDcare (The previous brand was CLEAR) independently. It prints roll films with black or color ink. It can reach as high as 3.0 transmission density, 600dpi spatial resolution, and 12-bit gray-scale. With original scroll cutting technology, It can easily achieve the printing of 5 kinds of specifications with a single roll of film, furthermore, It can meet the demands of medical dry film and medical color film respectively, and it is in compliance with radiology diagnostic requirements, therefore it is suitable for large and medium-sized hospitals. The output is 60 to 150 pictures for a single machine per day. When the demand is more than 150 pictures per day, two devices or more are recommended to be used simultaneously. 366-5 and 366-6 receive image datum in DICOM format via CLEAR DICOM software, and then output images. With CLEAR specified ink, it can perfectly meet the needs of CR, DR imaging application, and even CT, MRI, PET-CT, and other imaging applications.

MediaMedical dry filmMedical color film
Print TypeBlack and whiteColor

Basic Parameters

● Print Technology: Inkjet(dry, daylight safe operation);
● Film Supply: By roll or sheet;
● Interfaces: Hi-Speed USB and Ethernet (RJ45);
● Media: Medical dry film, Medical color film;
● Media Sizes: 8×10in, 10×12in, 11×14in, 14×14in, 14×17in, 14×51in, A4, A3, A3+;
● Maximum Width: 17inch.


● Maximum Density: ≥ 3.0D;
● Throughput: About 60 sheets per hour in standard mode for 14×17in;
● Application Fields:
•366-5: X-ray, CT, MRI, etc.;
•366-6: B ultrasound, endoscope, PET-CT, CT 3D reconstruction;
● Packing Dimensions:
•Printer: 775mm(L)×350mm(W)×300mm(H);
•Accessories: 705mm(L)×322mm(W)×215mm(H).


★ Superior print speed and full-size printing;
★ Wide range applications, support black & white and color images printing;
★ Roll media films to avoid film sticky ;
★ Encryption technology;
★ Support DICOM format images printing;
★ The world’s first roll inkjet printer;
★ Environmental protection without ozone.
