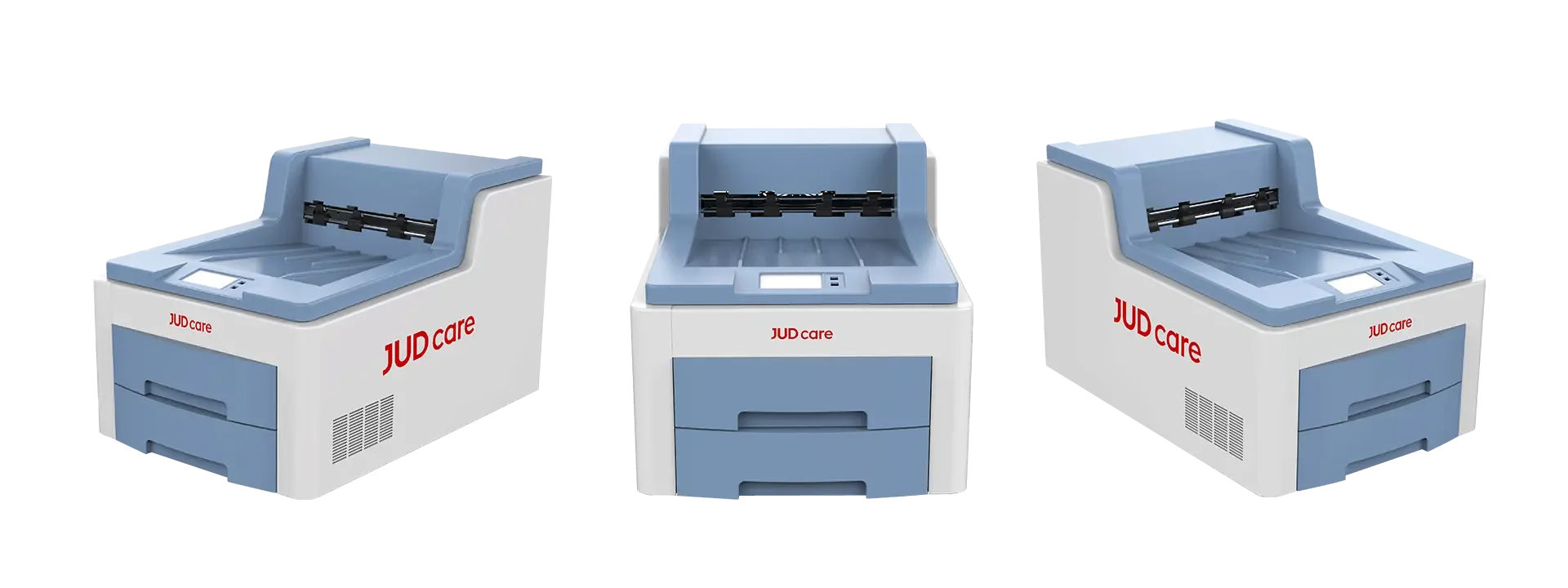

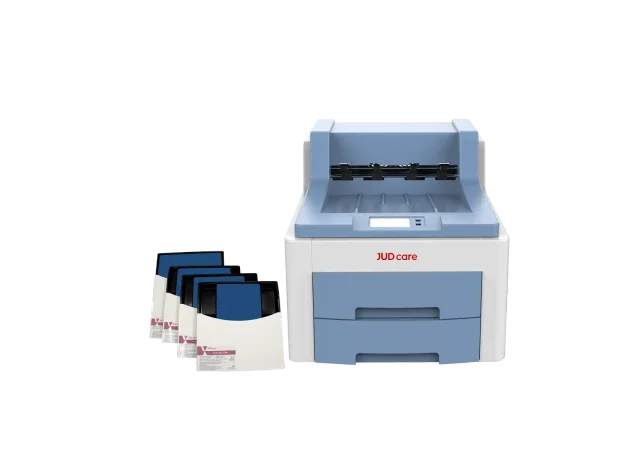

Medical X-ray Radiography Imaging Thermal Film Camera

369-3(4)

JUDcare (The previous brand was CLEAR) provides a high-resolution tabletop medical X-ray radiography imaging thermal film camera (369-3(4)). The service life of 369-3(4) is similar to some laser imagers. The most cost-effective and eco-friendly thermal film imager with compact size, superior printing speed, and full-sized coverage meets all kinds of radiology printing needs. The incorporated leading Toshiba printing technology, aerospace-level electromechanical control, and precise wind-control film-transmitting systems assure the most reliable, stable, and persistent imaging hardcopy output solution.

 369-3369-4
Spatial Resolution320dpi508dpi
Grayscale Contrast Resolution12bits14bits

Basic Parameters

● Film Transferring: Pick-up;

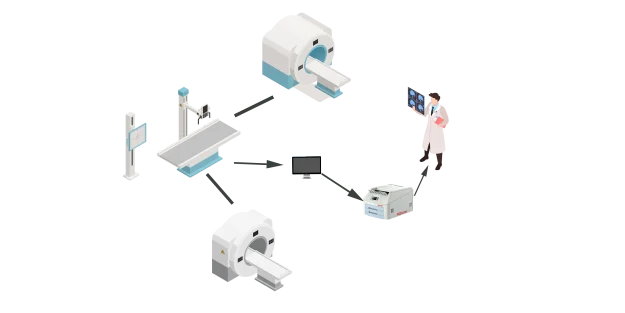

● Network Protocols: DICOM connection;
● Media: Thermal film(C1);
● Media Sizes: 8×10in, 10×12in, 11×14in, 14×17in;
● Media Inputs: 2 supply cassettes, 100 sheets each;
● Throughput: About 60 sheets/hour for 14×17in.

Application

● Print Technology: Direct thermal(dry, daylight safe operation);
● Maximum Density: ≥ 3.0D;
● Throughput: About 60 sheets/hour for 14×17in;
● Application Fields: X-ray, CT, MRI, etc.;
● Engine Dimensions: 810mm(L)×526mm(W)×500mm(H).

Features

★ Compact design to meet all kinds of printing needs;
★ Stable and super-persistent printing head capable of about 50,000 printing times;
★ Two trays to realize different printing sizes at the same time;
★ Eco-friendly silver halide-free printing;
★ Supreme Toshiba printing technology;
★ Aerospace-level electromechanical control system.
