6MP Medical Display

6MP Medical Display

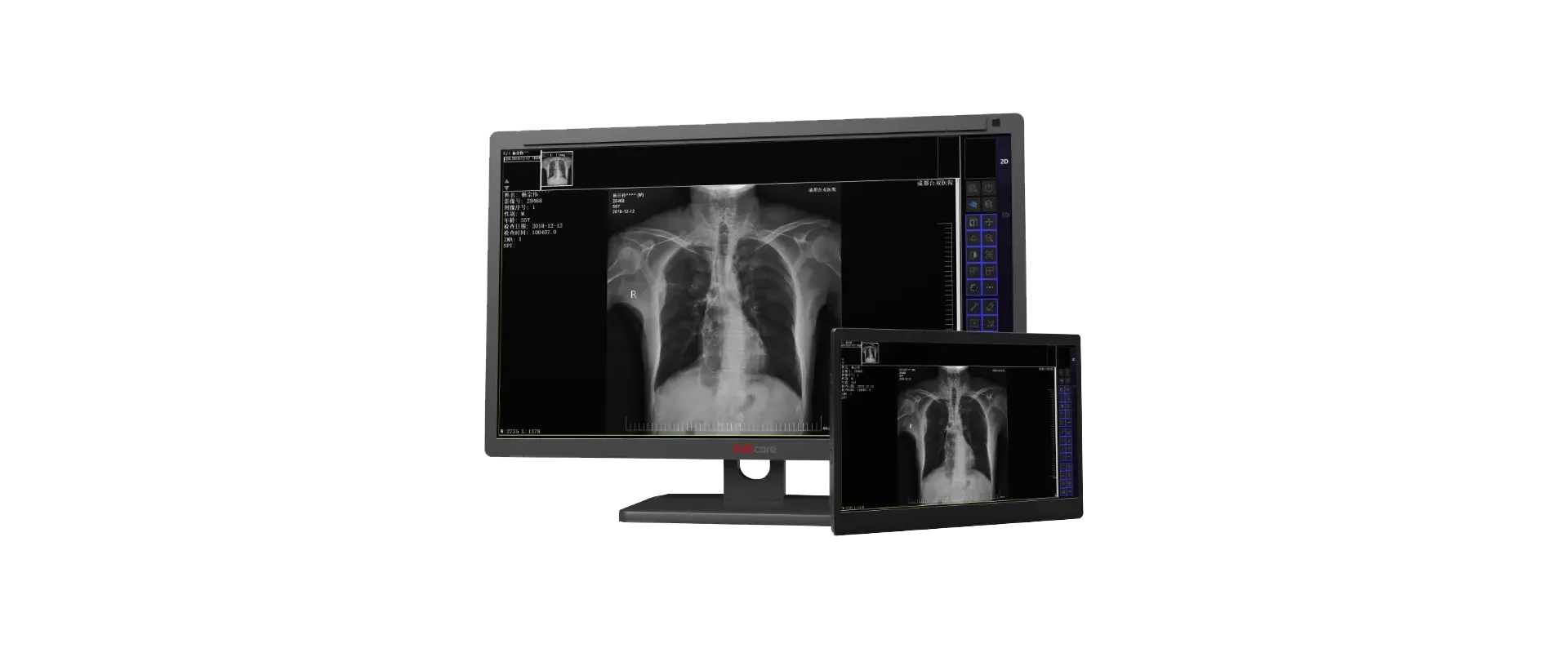

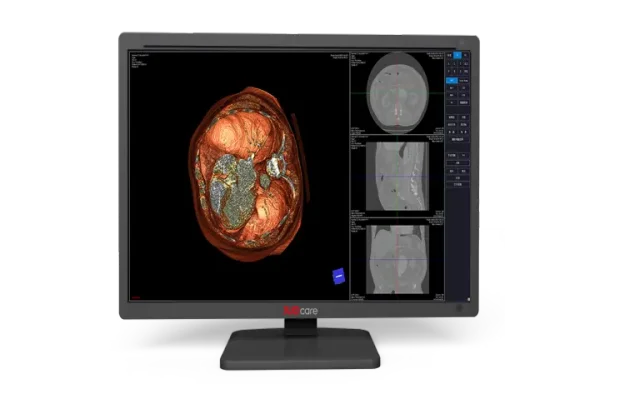

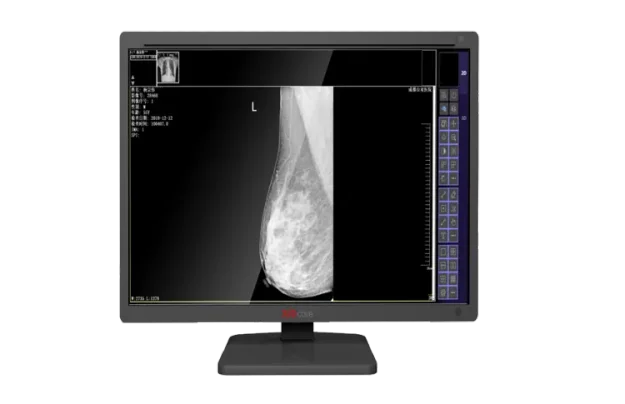

JUDcare MDS-C3006B diagnostic display is a monitor that meets the high demands of medical imaging in radiology. MDS-C3006B is with 6MP (3280×2048) high resolution, high brightness, high contrast ratio, and wide viewing angle, build-in 16bits LUT, can be applied to various medical image equipment and PACS system. It  is strictly  calibrated  to  comply  with  DICOM standards,  ensure  the  accurate  display  of  medical  images  and  details which is a good tool  to assist radiologists to view diagnostic images, such as X-ray systems, MRI , CT scans  etc.

Specification

● Model Name: MDS-C3006B
● Display Size: 30“
● Pixel: 6MP
● Resolution: 3280×2048
● Pixel pitch: 0.197(H)×0.197(V)mm
● Grayscale/Color: Color
● Max. Brightness : 1050cd/㎡
● Contrast: 1000:1
● Aspect Ratio: 16:10
● DICOM Standard Brightness: 40cd/㎡
● Film Holder: Integrated
● Power Consumption: 84W
● Standby Power Consumption: ≤ 0.5W

Features

★ Built-in brightness stabilization system, real-time detection and correct brightness to ensure stable brightness output;
★ Dynamic adjustment DICOM curve brightness provides reliable brightness for DICOM curve;
★ Support up to four split screens and independent control for display curve and brightness;
★ Integrated film holder support for x-ray film reading and diagnosis;
★ Compliant with DICOM standard.
