8MP Portable Diagnostic Display

8MP Portable Diagnostic Display

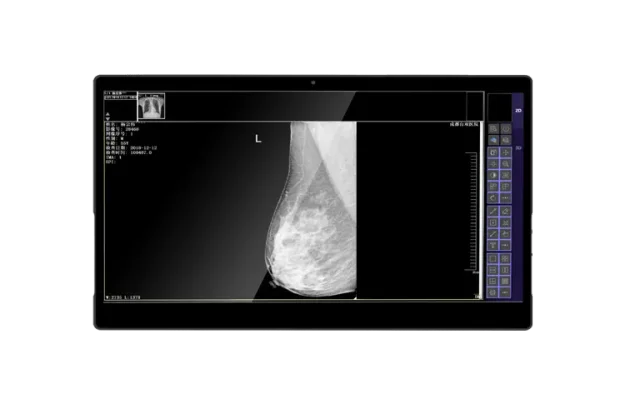

JUDcare IVS-8MP portable diagnostic display is a plug-and-play medical monitor. Equipped with 14.1-inch display and 8MP resolution, the workstation meeting the standard of professional displaying for various radiography images. The portable diagnostic display does not need to be connected to the hospital information software, and can realize remote office, film reading, diagnosis, report writing and auditing etc. It is a good tool to help doctors diagnose and work anytime and anywhere.


● Model Name: IVS-8MP
● Display Size: 14.1“
● Pixel: 8MP
● Resolution: 3840×2160
● Display color or grayscale: 1064M(8bit + 2bit FRC)
● Grayscale/Color: Color
● Max. Brightness : 500cd/㎡
● Contrast: 1500:1
● Communication: WIFI and Bluetooth
● Operation System: Hongding OS 1.0
● Power Supply: Built-in lithium battery 7.4V 7000mAh
● Display Size: 326x212x12mm
● Display Net Weight: 1.05kg


★ Easy to carry and diagnosis anytime and anywhere;
★ High resolution with 8MP and 10bit gray scale ensure the accurate display of medical images;
★ Compliant with DICOM standard ensure professional output of medical images;
★ Break the space limit it is optimal tool for remote consultation and wards inspection.
