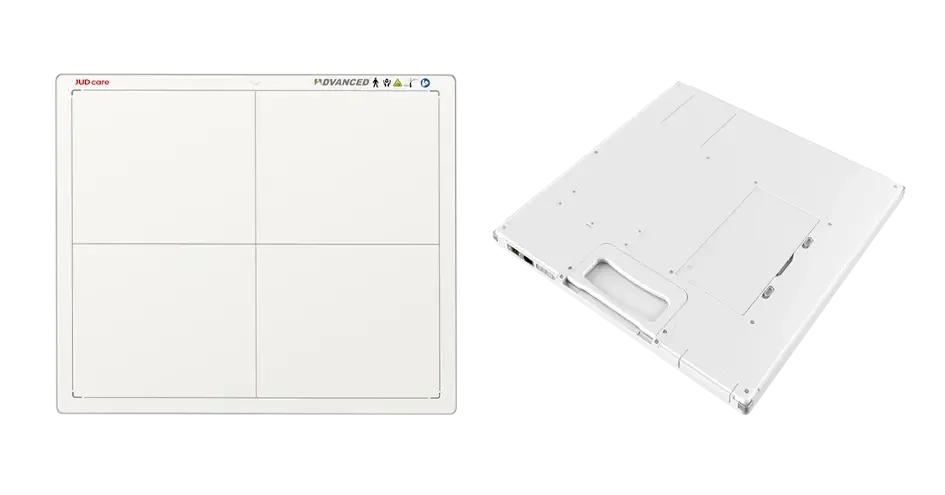

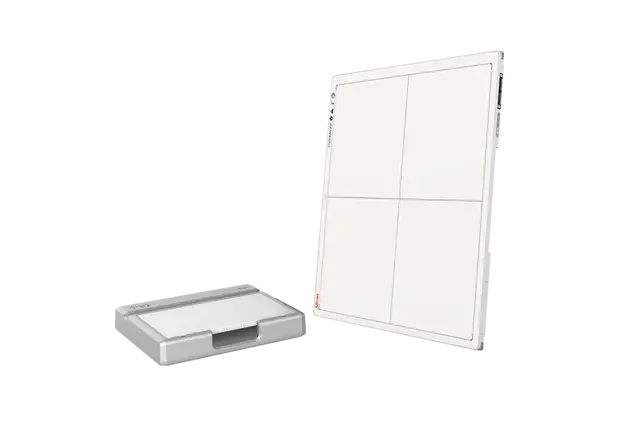

Mars 1717V is a smart 17×17-inch wireless, cassette-sized flat panel detector for general radiography systems, surgical C-arm systems and veterinary radiography systems. It features high image quality, fast image acquisition, sudden power-off data protection, reliable AED, a long battery life, standard image stitching function and optional cost-effective virtual grid.  The Mars 1717V is the optimal choice for customers to upgrade CR to DR systems.

Basic Parameters

● Scintillator: CsI;
● Detector Technology: Amorphous Silicon;
● Active Area: 427×427 mm;
● Number of Pixels: 3072 × 3072;
● Spatial Resolution: 3.1 lp/mm;
● Pixel Pitch: 139 μm;
● AD Conversion: 16 bit.


★ Direct deposition CsI for better image quality with lower dose;
★ Dual band (2.4G and 5G) wireless support with easy sharing;
★ Long battery life and smart workflow;
★ Wireless cassette detector per ISO 4090, fits in bucky;
★ Stable iSync+ Automatic Exposure Detection (AED);
★ User Friendly Interface with powerful function but easy to operate;
★ Image stitching function (free of charge);
★ Cost-effective virtual grid (optional).
