X-ray Film Viewer

MDST-24

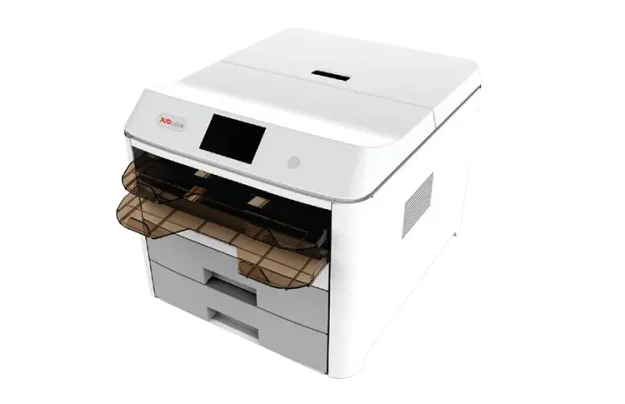

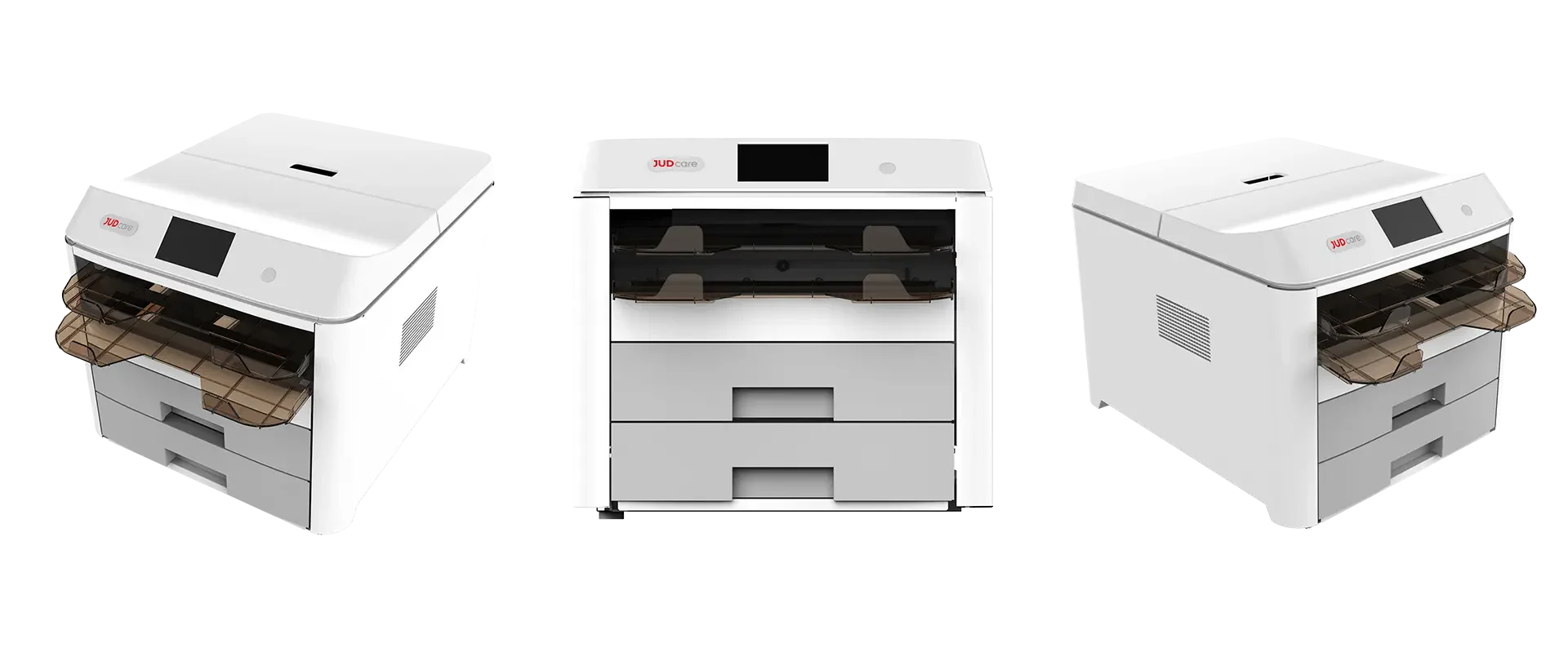

JUDcare MDST-24  is a high quality dry imager designed for radiography images printing.  It is designed with two input cassettes and two out-put trays as well as large size real-time display which offers enhanced flexibility and convenience. Equipped with 508dpi resolution printer head, JUDcare MDST-24 offering high throughput and high-resolution for all of your centralized imaging requirements.

Specifications

● Spatial Resolution: 508dpi;

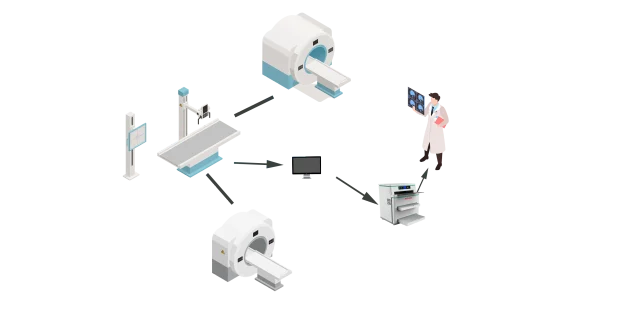

● Applicable Fields: X-ray, CT, MRI, etc.;
● Maximum Density: ≥ 3.0D;
● Media Sizes: 8×10in, 10×12in, 11×14in, 14×17in;
● Print Technology: Direct thermal (dry, daylight safe operations);
●Media Inputs: 2 supply cassettes, 100 sheets each;
●Throughput: 8×10in: about 90 sheets/hour 14×17in: about 65 sheets/hour;
●Grayscale: 14bits;
●Image Formats: DICOM;
●Engine Dimensions: 600mm(L)×500mm(W)×465mm(H); Weight: 50Kg;

Features

★ Compact design to meet all kinds of printing needs;
★ Stable and super-persistent printing head capable of about 50,000 printing times;
★ Two input trays to realize different printing sizes at the same time;
★ Two output trays automatic sorting of printed films;
★ Supreme printing technology with self-adaptive imaging processing software;
★ Large LCD display, status include online alert, fault and menu navigation buttons.
