Flat panel detectors (FPD)

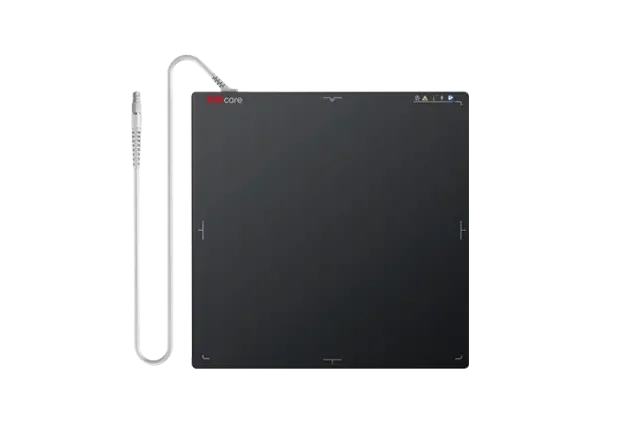

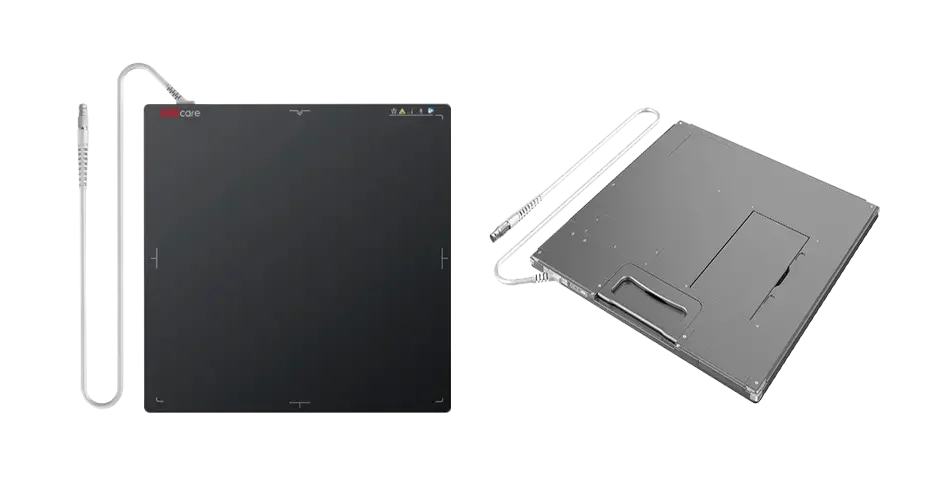

Venu1717X is a 17×17-inch wired, cassette-sized flat panel detector for general radiography systems and veterinary radiography systems. It features superior stability, high image quality, fast image acquisition, sudden power-off data protection, reliable AED and standard image stitching function. The Venu1717X is the optimal economic choice for customers to upgrade analog x-ray systems to digital radiography systems.

Basic Parameters

● Scintillator: CsI;
● Detector Technology: Amorphous Silicon;
● Active Area: 427×427 mm;
● Number of Pixels: 3072 × 3072;
● Spatial Resolution: 3.6 lp/mm;
● Pixel Pitch: 139 μm;
● AD Conversion: 16 bit;
● Power: 30W.


★ Direct deposition CsI for better image quality with lower dose;
★ Cassette detector per ISO 4090, fits in bucky;
★ Stable iSync+ Automatic Exposure Detection (AED);
★ Highly reliable, flexible tether;
★ Supports a fast and efficient workflow;
★ Image stitching function (free of charge);
★ Cost-effective virtual grid (optional).
