X-ray Film Viewer

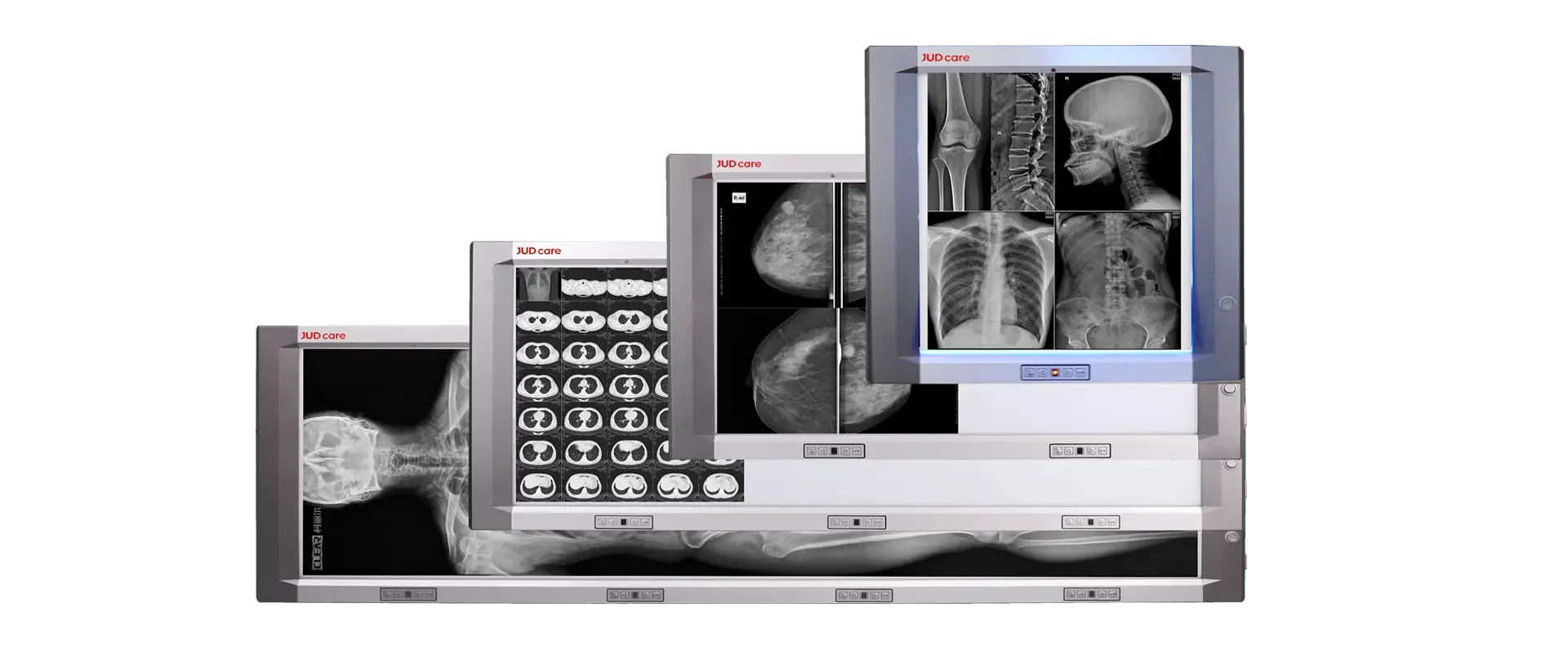

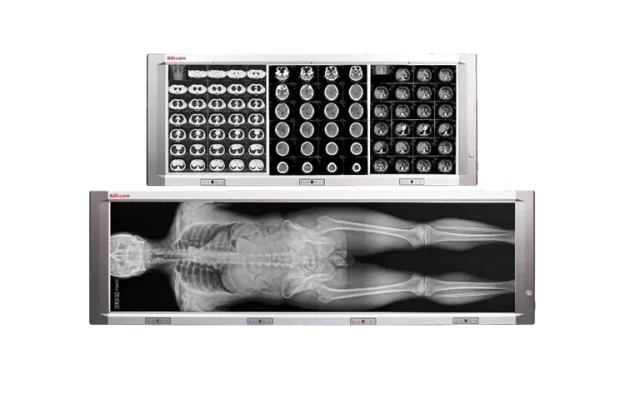

Advanced ultra-bright LED with International technology is adopted in this product as the backlight source, suitable for the viewing and diagnosis of high-density mathematical films and mammography films.

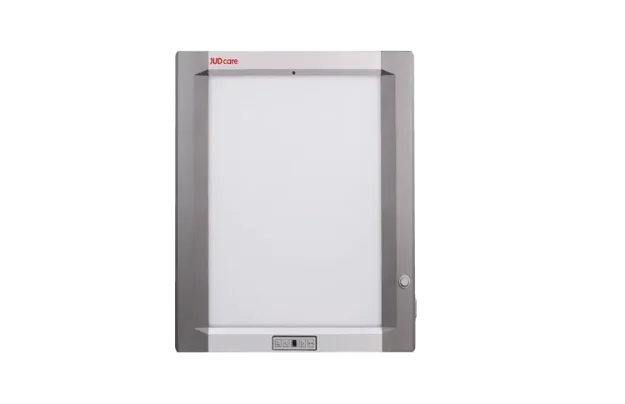

Basic Parameters

● Type: SINGLE PANEL
● Model: CFV-01A
● Dimensions (mm): Frame (L × H × T) 500 × 510 × 45
● Light Source: Matrix LED
● LED Lifespan: > 100,000hrs
● Light Uniformity: > 98%
● Brightness : >15,000 lux >4,500 cd/m2
● Power Supply Input: AC100-240V 50/60Hz
● Power Consumption:15W

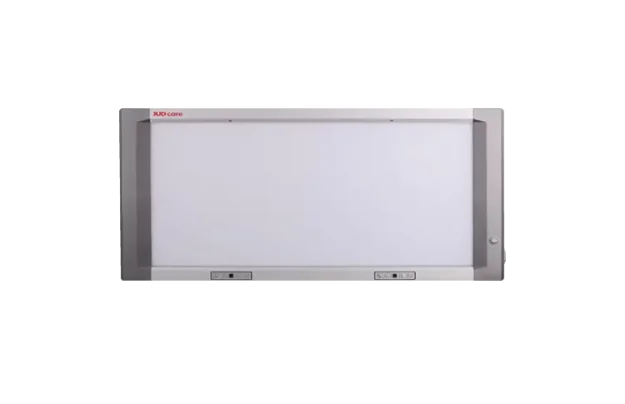

Basic Parameters

● Type: SINGLE PANEL
● Model: CFV-01B
● Dimensions (mm): Frame (L × H × T) 850 × 510 × 45
● Light Source: Matrix LED
● LED Lifespan: > 100,000hrs
● Light Uniformity: > 98%
● Brightness : >15,000 lux >4,500 cd/m2
● Power Supply Input: AC100-240V 50/60Hz
● Power Consumption:30W

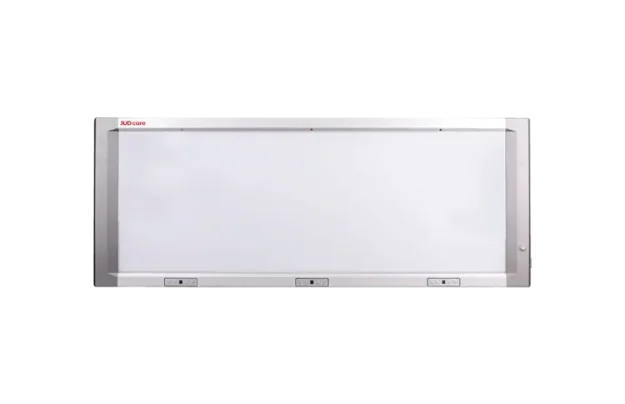

Basic Parameters

● Type: SINGLE PANEL
● Model: CFV-01C
● Dimensions (mm): Frame (L × H × T) 1200 × 510 × 45
● Light Source: Matrix LED
● LED Lifespan: > 100,000hrs
● Light Uniformity: > 98%
● Brightness : >15,000 lux >4,500 cd/m2
● Power Supply Input: AC100-240V 50/60Hz
● Power Consumption:45W

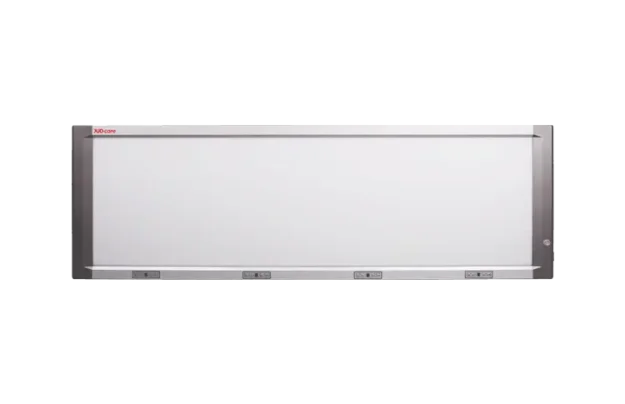

Basic Parameters

● Type: SINGLE PANEL
● Model: CFV-01D
● Dimensions (mm): Frame (L × H × T) 1570 × 510 × 45
● Light Source: Matrix LED
● LED Lifespan: > 100,000hrs
● Light Uniformity: > 98%
● Brightness : >15,000 lux >4,500 cd/m2
● Power Supply Input: AC100-240V 50/60Hz
● Power Consumption:60W

Features

★ Adopt with the acrylic euphotic panel from Japan Mitsubishi. No light fades. Uniformity >98%;
★ Self-adaptive regional illumination, with high brightness > 4,500 cd/㎡ ( >15,000lux);
★ Each panel has sensor, can control the power and brightness with dimmer individually. Insert the X-ray film, the view box is light on; Plug the film out, the light
is off. Smart CLEAR LED X-ray viewer;
★ Patented Elastic silica rubber clip instead of rolling needle layout, avoid the film getting stuck or dropping;
★ The back side is Aluminum alloy and frame is acrylic, guaranty light and durable;
★ Unique design thickness 45mm to make sure the heat dissipation and stability good;
★ Adopt Built-in power supply with the switch with CE and CCC, the wide voltage is: 110V-240V/50HZ;
★ Through with CE, ISO9001:2008, IEC60601 certificates.
